突出优势
1、采用块偏心作为激振力，激振力强。
2、筛子横梁与筛箱采用高强度螺栓联结，无焊接。
3、筛机结构简单，维修方便快捷。
4、采用轮胎联轴器，柔性联接，运转平稳。

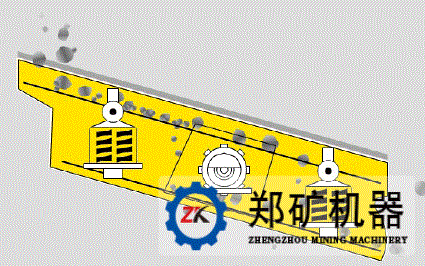

YK圆振动筛是以筛箱和振动器等激振部件及橡胶弹簧为弹性元件组成的单质量强迫振动系统的筛分设备，电动机通过轮胎式联轴节驱动振动器,使振动器的偏心块快速旋转产生激振力。使筛箱做连续振动，物料则随筛箱在倾斜的筛面上作连续的抛射运动；抛起时分层，落下与筛面接触过程中颗粒透筛,周而复始地完成颗粒的分级过程。
| 型号规格 | 筛网层数 | 筛网面积（㎡） | 振动频率 (r/min) | 双振幅(mm) | 处理能力 (m³/h) | 电机功率(kW) | 外形尺寸(mm) | 重量 (kg) |
| 2YK1224 | 2 | 2.88 | 970 | 6-8 | 20-120 | 5.5 | 2673x2382x2027 | 1750 |
| YK1235 | 1 | 4.2 | 970 | 6-8 | 20-150 | 5.5 | 3710x2464x1450 | 1729 |
| 2YK1235 | 2 | 4.2 | 970 | 6-8 | 20-150 | 7.5 | 3705x2393x2339 | 2476 |
| 3YK1235 | 3 | 4.2 | 970 | 6-8 | 20-150 | 7.5 | 3621x2521x2581 | 3158 |
| 4YK1235 | 4 | 4.2 | 970 | 6-8 | 20-150 | 11 | 3510x2521x2830 | 4160 |
| YK1545 | 1 | 6.75 | 970 | 6-8 | 20-150 | 11 | 4904x3044x2179 | 3319 |
| 2YK1545 | 2 | 6.75 | 970 | 6-8 | 20-150 | 15 | 5042x3090x3165 | 5308 |
| 3YK1545 | 3 | 6.75 | 970 | 6-8 | 20-150 | 15 | 4972x3090x3395 | 5915 |
| 4YK1545 | 4 | 6.75 | 970 | 6-8 | 20-150 | 18.5 | 4915x3155x3804 | 7260 |
| YK1548 | 1 | 7.2 | 970 | 6-8 | 20-150 | 11 | 5190x3044x2186 | 3319 |
| 2YK1548 | 2 | 7.2 | 970 | 6-8 | 20-150 | 15 | 5265x3140x3208 | 5284 |
| 3YK1548 | 3 | 7.2 | 970 | 6-8 | 20-150 | 15 | 5200x3090x3440 | 6186 |
| 4YK1548 | 4 | 7.2 | 970 | 6-8 | 20-150 | 18.5 | 5200x3155x3849 | 7284 |
| YK1860 | 1 | 10.8 | 970 | 6-8 | 32-350 | 15 | 6302x3365x2992 | 4651 |
| 2YK1860 | 2 | 10.8 | 970 | 6-8 | 32-350 | 18.5 | 6020x3455x3756 | 6195 |
| 3YK1860 | 3 | 10.8 | 970 | 6-8 | 32-350 | 18.5 | 6020x3455x4180 | 7613 |
| 4YK1860 | 4 | 10.8 | 970 | 6-8 | 32-350 | 22 | 5963x3505x4463 | 8650 |
| YK2160 | 1 | 12.6 | 970 | 6-8 | 66-720 | 18.5 | 6302x3730x2992 | 4917 |
| 2YK2160 | 2 | 12.6 | 970 | 6-8 | 66-720 | 22 | 5966x3958x3975 | 6856 |
| 3YK2160 | 3 | 12.6 | 970 | 6-8 | 66-720 | 30 | 5966x3958x4400 | 9112 |
| 4YK2160 | 4 | 12.6 | 970 | 6-8 | 66-720 | 30 | 5966x3958x4780 | 11405 |
| YK2460 | 1 | 14.4 | 970 | 6-8 | 75-750 | 18.5 | 6302x4155x2992 | 5243 |
| 2YK2460 | 2 | 14.4 | 970 | 6-8 | 75-750 | 30 | 6027x4308x3975 | 8503 |
| 3YK2460 | 3 | 14.4 | 970 | 6-8 | 75-750 | 30 | 6027x4308x4400 | 10411 |
| 4YK2460 | 4 | 14.4 | 970 | 6-8 | 75-750 | 30 | 5966x4308x4780 | 12068 |
| 2YK2475 | 2 | 18 | 970 | 6-8 | 120-900 | 30 | 7812x4308x4642 | 10709 |
| 3YK2475 | 3 | 18 | 970 | 6-8 | 120-900 | 37 | 7718x4393x5033 | 13400 |
| 4YK2475 | 4 | 18 | 970 | 6-8 | 120-900 | 45 | 7718x4494x5361 | 15500 |
| YK3060 | 1 | 18 | 970 | 6-8 | 200-900 | 30 | 6302x4943x3108 | 14052 |
| 2YK3060 | 2 | 18 | 970 | 6-8 | 200-900 | 37 | 6207x4943x3985 | 17185 |
| 3YK3060 | 3 | 18 | 970 | 6-8 | 200-900 | 45 | 6207x4943x4485 | 19200 |
| 4YK3060 | 4 | 18 | 970 | 6-8 | 200-900 | 45 | 6207x4943x4785 | 21080 |
